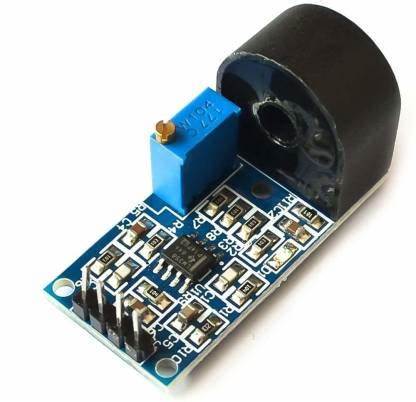

ZMCT103C AC Current Sensor Module he microcurrent precision current sensor is a module capable to measure a current level up to 5A. This current sensor module is based upon the ZMCT103C IC. The module has 4 output pins and provides an analog output corresponding to the AC current passing through the wire. Applications of ZMCT103C Current Sensor Module Below are some of the applications of the ZMCT103C current sensor module: Measuring AC currents Monitor any current surges Ground fault detection Household electrical equipment Pin Configuration for ZMCT103C Current Sensor Module The ZMCT103C module has 4 pins, which are as follows: Ground (G) Ground(G) Signal Out VCC( 5V) Specification: Current Ratio: 5 A:5 mA Rated Primary Current at 50/60 Hz: 5 A Winding D.C. Resistance at 20 °C: 155 Ω Maximum Primary Current at 50/60 Hz: 20 A Transformer Turns Ratio: Np:Ns = 1000:1 Isolation Voltage: 4500V Onboard sampling resistor, to drop the voltage to lower levels Operating Temperature: -40 to 85 °C Pin Length of the secondary coil (encapsulation) > 3mm Epoxy Encapsulation
